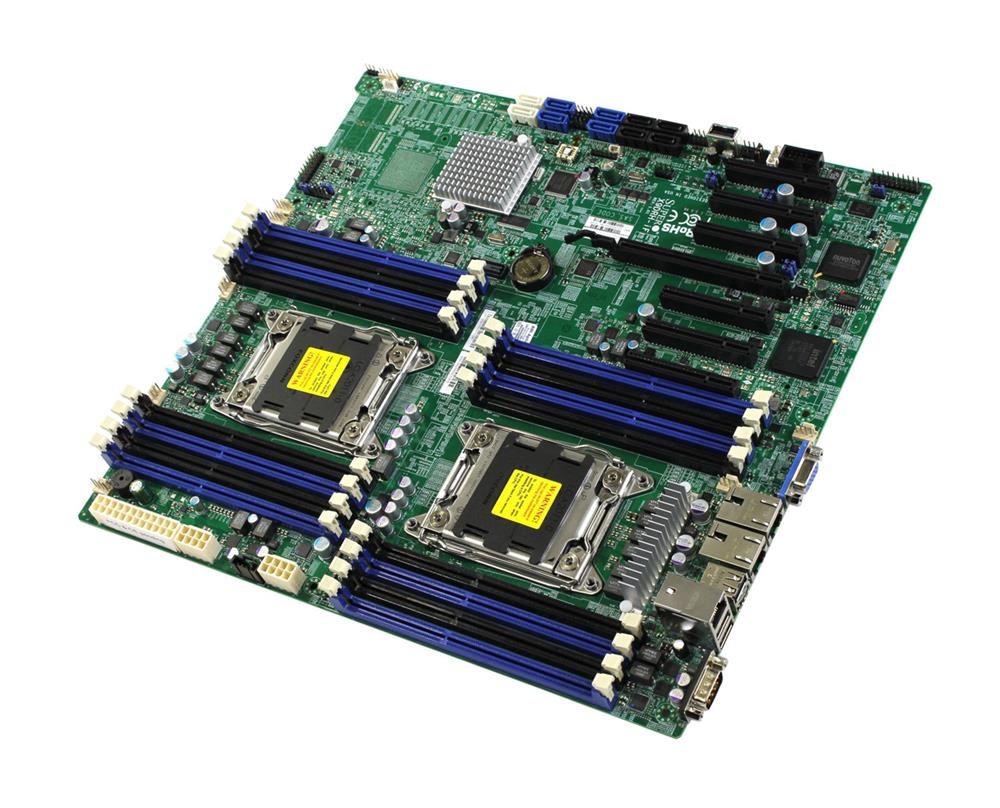

X9DRH-iF SuperMicro Dual Socket LGA 2011 Intel C602 Chipset Intel Xeon E5-2600/E5-2600 v2 Processor Support DDR3 16x DIMM 2x SATA 3.0Gb/s Extended-ATX Server Motherboard (Refurbished)

X9DRH-iF SuperMicro Dual Socket LGA 2011 Intel C602 Chipset Intel Xeon E5-2600/E5-2600 v2 Processor Support DDR3 16x DIMM 2x SATA 3.0Gb/s Extended-ATX Server Motherboard (Refurbished)

Mfg Part No:

X9DRH-iF

Icon Global Part Number(GPN):

1469504122

Availability:Available for Order
$888.20 $1,268.85 You Save: $380.65 (30% )

Looking for a large quantity of X9DRH-iF? Call us at +1 (888) 898-8012 or Request a Quote below and one of our sales representative will get in touch with you very soon.

Request for Quote

Please call at +1 (888) 898-8012 and one of our representative will be happy to assist you with part no X9DRH-iF. Or Request a Quote below:



Technical Specifications

Model
Manufacturer SuperMicro
Manufacturer Part # X9DRH-iF
Performance
Product Type Server System Board
Form Factor EATX
CPU Socket Type LGA 2011
Supported CPU(s) Intel Xeon Processor
Supported CPU Technologies 64-bit
AES New Instructions
Demand Based Switching
Enhanced Intel Speedstep Technology
Execute Disable Bit
Idle States
Intel 64 Architecture
Intel Trusted Execution Technology
Intel Virtualization Technology
Thermal Monitoring Technologies
Chipset Intel C602
Number of Memory Slot(s) 16
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
PC3-6400 (DDR3-800)
PC3-8500 (DDR3-1066)
Maximum Installed Memory 1TB
Expansion Slots PCI Express x16
PCI Express x8
Expansion Slots Details
  • 1 PCI-E 3.0 x16
  • 6 PCI-E 3.0 x8
  • Storage Controller Serial-ATA 3.0 Gbps
    Serial-ATA 6.0 Gbps
    Storage Controller Details
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • On-Board Video Controller Matrox G200eW
    Network Gigabit Ethernet
    Connectors/Ports RJ-45 (Ethernet)
    USB 2.0
    Connectors/Ports Details
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
  • 7 USB 2.0 ports total (4 rear + 2 via header + 1 Type A)
  • 1 VGA port
  • 2 Fast UART 16550 serial COM port (1 rear & 1 header)
  • 1 DOM (Disk on Module) power connector
  • 1 TPM Header
  • General Information

  • X9DRH-iF SuperMicro Dual Socket LGA 2011 Intel C602 Chipset Intel Xeon E5-2600/E5-2600 v2 Processor Support DDR3 16x DIMM 2x SATA 3.0Gb/s Extended-ATX Server Motherboard (Refurbished)
