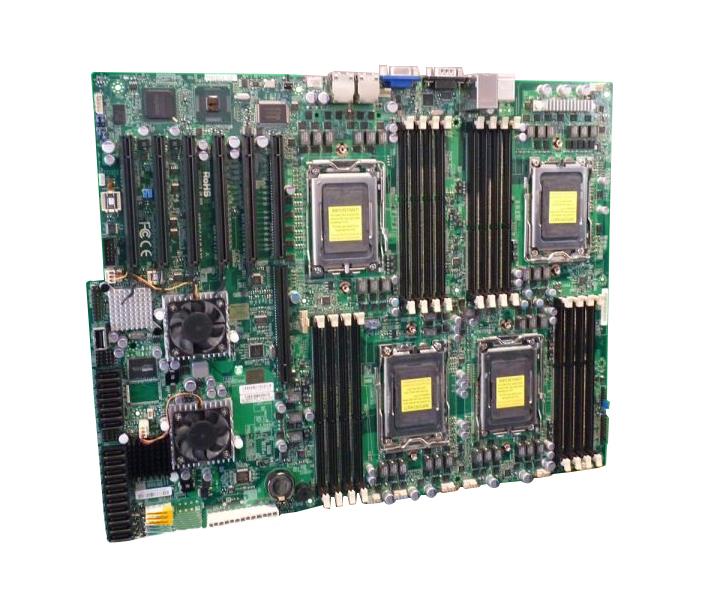

SuperMicro H8QGL-6F Motherboard MBD-H8QGL-6F
Global Part Number(GPN):
1483844021
- Standard Memory: 0GB (Removable)
- Maximum Memory: 512GB ECC LRDIMMs, 512GB ECC Registered DIMMs, 128GB ECC Unbuffered DIMMs
- Memory Expansion: 4 Sockets per CPU, 16 Sockets Using four CPUs
- CPU: AMD Opteron
- Chipset: AMD SR5690
- Bus Architecture: PCI Express; SSD SATA 2.5-inch 9.5mm; USB
- Mfr System P/N: MBD-H8QGL-6F
- Memory Comments: DDR3-1333 modules automatically clock down to 1066MHz and 800MHz depending on the number of modules installed. Low Voltage Quad Rank modules will only opperate at 1066MHz. This system supports either Registered ECC or Unbuffered ECC memory. Mixing Registered ECC and Unbuffered ECC modules is not supported within this system. Using ECC LRDIMMS: any configuration up to 512GB can be reached using any combination of 32GB Modules. Using Registered ECC DIMMs: any configuration up to 512GB can be reached using any combination of 2GB, 4GB, 8GB, 16GB and 32GB modules. ECC Unbuffered DIMMs: any configuration up to 128GB can be reached using any combination of 2GB, 4GB and 8GB modules.
Memory Upgrade for SuperMicro H8QGL-6F Motherboard MBD-H8QGL-6F
| Part # | Brand | Type | Capacity | Error Correction | Voltage | Price | ||
|---|---|---|---|---|---|---|---|---|
|
3D-14D392R29087-64G | 3D Memory | PC-14900 1866Mhz | 64 GB | Registered ECC Rank 2 | 1.5 | $90.37 | Add to List |
|
3D-14D392R28862-64G | 3D Memory | PC-12800 1600Mhz | 64 GB | Registered ECC Rank 2 | 1.5 | $90.37 | Add to List |
|
3D-14D392R28743-64G | 3D Memory | PC-12800 1600Mhz | 64 GB | Registered ECC Rank 2 | 1.35 | $126.66 | Add to List |
|

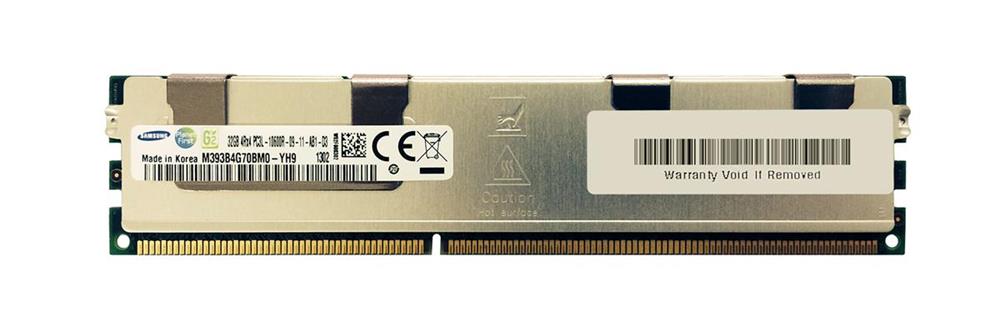

3D-14D392R8658-32G | 3D Memory | PC-10600 1333Mhz | 32 GB | Registered ECC Rank 4 | 1.35 | $36.85 | Add to List |
|
|
3D-14D392R29058-16G | 3D Memory | PC-14900 1866Mhz | 16 GB | Registered ECC Rank 2 | 1.5 | $22.59 | Add to List |
Solid State Storage
Solid State Drive
| Part # | Brand | Type | Capacity | Form Factor | Cells | Price | ||
|---|---|---|---|---|---|---|---|---|
|
SSDSC2BB016T7 | Intel | SATA 6.0 Gbps | 1.6 TB | 2.5-inch | Multi-level Cell (MLC) | $429.09 | Add to List |
|
SSDSC2BB012T7 | Intel | SATA 6.0 Gbps | 1.2 TB | 2.5-inch | Multi-level Cell (MLC) | $137.79 | Add to List |
|
SSDSC2BB960G7 | Intel | SATA 6.0 Gbps | 960 GB | 2.5-inch | Multi-level Cell (MLC) | $187.08 | Add to List |
|

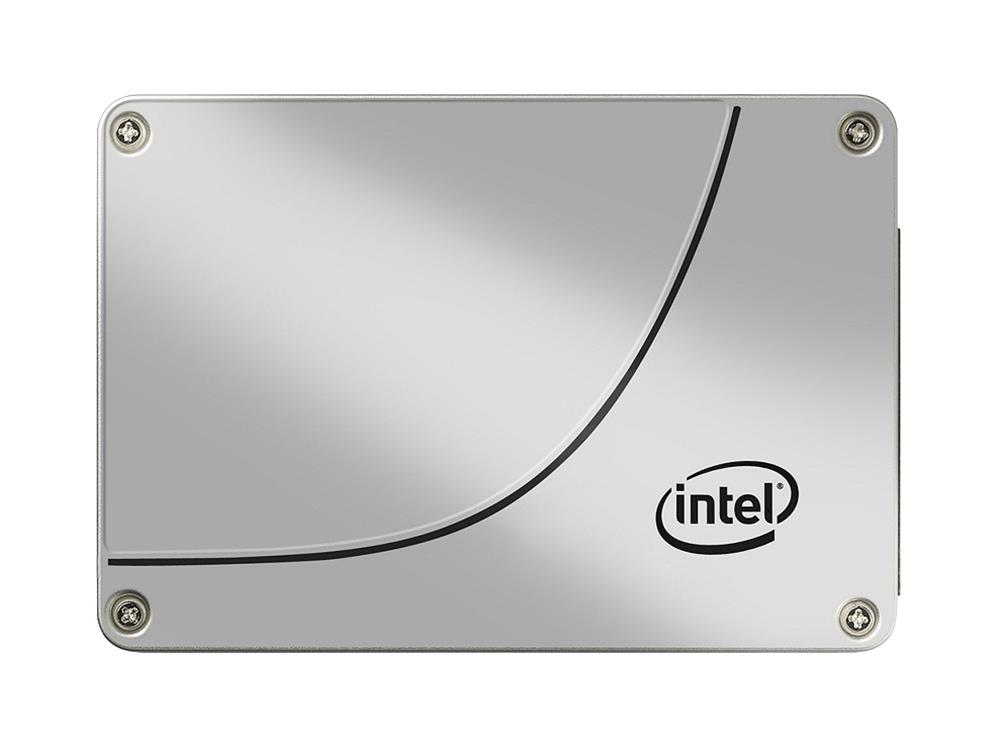

SSDSC2BB800G7 | Intel | SATA 6.0 Gbps | 800 GB | 2.5-inch | Multi-level Cell (MLC) | $137.46 | Add to List |
|
MTFDDAC512MAM-1K1 | Micron | SATA 6.0 Gbps | 512 GB | 2.5-inch | Multi-level Cell (MLC) | $154.06 | Add to List |
Hard Drives
| Part # | Brand | Type | Capacity | Form Factor | Cache | Speed | Price | ||
|---|---|---|---|---|---|---|---|---|---|
|
ST6000NM0115 | Seagate | SATA 6.0 Gbps | 6 TB | 3.5-inch | 256 MB | 7200 RPM | $160.66 | Add to List |
|
ST4000NM0035 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 128 MB | 7200 RPM | $136.77 | Add to List |
|
ST4000NM0115 | Seagate | SATA 6.0 Gbps | 4 TB | 3.5-inch | 256 MB | 7200 RPM | $219.68 | Add to List |
|
WD4000FYYZ | Western Digital | SATA 6.0 Gbps | 4 TB | 3.5-inch | 64 MB | 7200 RPM | $184.41 | Add to List |
|

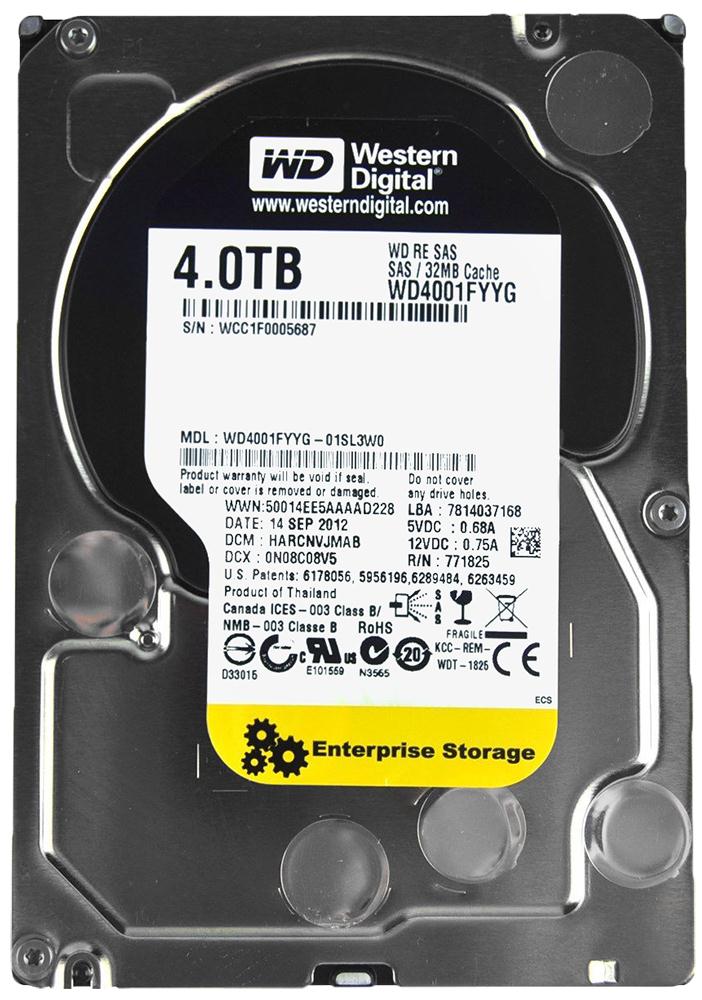

WD4001FYYG | Western Digital | SAS 6.0 Gbps | 4 TB | 3.5-inch | 32 MB | 7200 RPM | $129.59 | Add to List |
