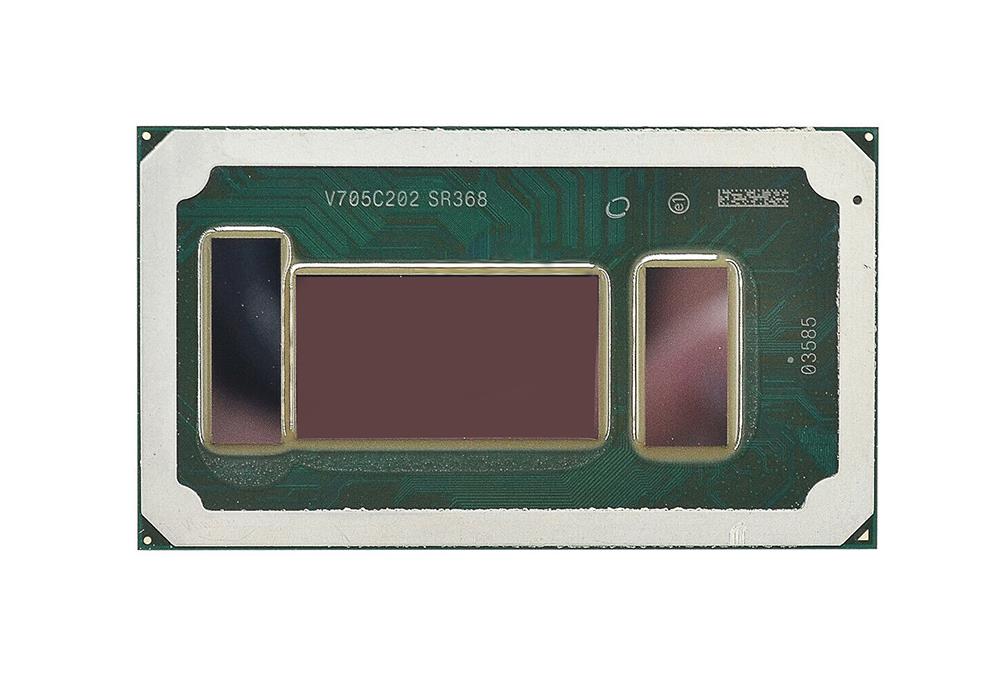

FH8067703036924 Intel Core i7-7660U Dual-Core 2.50GHz 4MB L3 Cache Socket BGA1356 Mobile Processor
Mfg Part No:
Global Part Number(GPN):
FH8067703036924
Global Part Number(GPN):
1490554409
Looking for a large quantity of FH8067703036924? Call us at +1 (888) 898-8012 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Request for Quote
Please call at +1 (888) 898-8012 and one of our representative will be happy to assist you with part no FH8067703036924. Or Request a Quote below:
Technical Specifications
| Processor - Package Model: i7-7660U Socket Type: BGA 1356 | |
| Processor Type | Mobile |
| Series | Core i7 Mobile |
| Core Model Type/ProcNo. | i7-7660U |
| Processor Code Name | Kaby Lake-U |
| Core Stepping | J1 |
| Manufacturing Technology | 14 nm |
| # of Cores | 2 |
| # of Threads | 4 |
| Clock Speed | 2.50 |
| L3 Cache Size | 4 MB |
| Front Side Bus / QuickPath Interconnect | 4.00 GT/s |
| Thermal Power | 15 Watts |
| Max Memory Size | 32 GB |
| Memory Types |
DDR3L-1600 DDR4-2133 LPDDR3-1866 |
| Memory Channels | 2 |
| Maximum Memory Bandwidth | 34.1 GB/s |
| ECC Memory Supported | No |
| CPU Socket Type | BGA 1356 |
| Max CPU Configuration | 1 |
| TJUNCTION | 100 °C |
| Package Size | 42x24x1.3 |
| Processor Graphics | Intel Iris Plus Graphics 640 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.10 GHz |
| Graphics Video Max Memory | 32 GB |
| Graphics Output | eDP/DP/HDMI/DVI |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4) | 4096 x 2304 @ 24Hz |
| Max Resolution (DP) | 4096 x 2304 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 4096 x 2304 @ 60Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.5 |
| Intel Quick Sync Video | Yes |
| Intel InTru 3D Technology | Yes |
| Intel Clear Video HD Technology | Yes |
| Intel Clear Video Technology | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x5926 |
| Embedded Options Available | No |
| PCI Express | 3.0 |
| PCI Express Configurations | 1 x4 |
| Max # of PCI Express Lanes | 12 |
| Advanced Technologies |
Enhanced Intel SpeedStep Technology Idle States Instruction Set 64-bit Intel 64 Intel Fast Memory Access Intel Flex Memory Access Intel Identity Protection Technology Intel My WiFi Technology Intel Speed Shift Technology Intel Stable Image Platform Program (SIPP) Intel Transactional Synchronization Extensions Intel Turbo Boost Technology 2.0 Intel Virtualization Technology (VT-x) Intel Virtualization Technology for Directed I/O (VT-d) Intel vPro Platform Eligibility Intel VT-x with Extended Page Tables (EPT) Thermal Monitoring Technologies |
| Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
| Security & Reliability |
Execute Disable Bit Intel AES New Instructions Intel Boot Guard Intel OS Guard Intel Software Guard Extensions (Intel SGX) Intel Trusted Execution Technology Secure Key |
| Product Condition | OEM |
| Standard Warranty | 21 days |
General Information
OEM CPUs.
FH8067703036924 Intel Core i7-7660U Dual-Core 2.50GHz 4MB L3 Cache Socket BGA1356 Mobile Processor Refurbished
- The CPU you are ordering, if it is designated as OEM it can be NEW or Refurbished.
- Depending on how old the CPU is and how long it has been out of production, the CPU condition may be new, pull, pre-owned, or like-new condition. The older the cpu is the more likely it is out of production. In that case these pre-owned, pulls are the only ones available.
- ALL OEM Cpus are tested before shipping and carry a 21 day warranty for replacement only. There are NO cancellations or returns accepted for these parts.
- Please check your system requirements carefully before ordering CPU's.
- If you are going to use the CPU in a dual-cpu SERVER application or machine then YOU MUST match the SL code for the new CPU with your existing CPU . Please call us if you need help.
- SL codes - All INTEL cpu's are also designated by a Step code or SLcode. This is a 5 digit alpha-numberic code on the cpu itself. Your particular cpu may have many SL codes (think of them as versions of cpus made). In order to run dual cpus in one machine the SL codes must match
- If you have a brand name computer (eg HP, DELL, IBM you must provide us with a HeatSink part number or we will ship you a generic heatsink if you order one from us.)
